6 Inch PLC Proface HMI Industrial GP2301-LG41-24V PLC Touch Screen

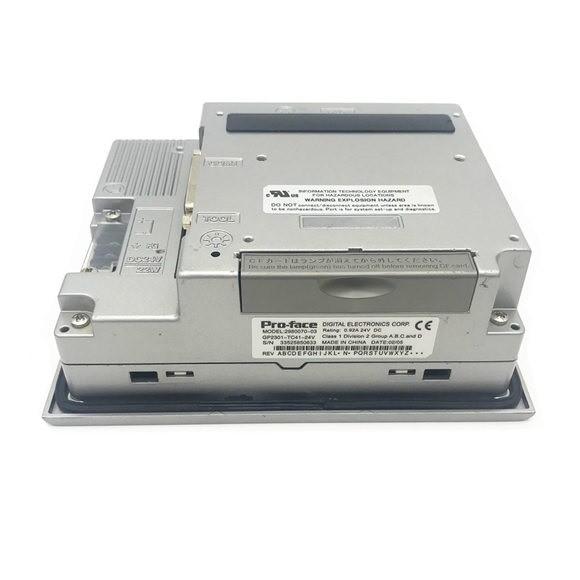

Proface GP2301-LG41-24V 6" plc hmi Touch Screen Panel

• Manufacturer : Pro-Face

• Product No. : GP2301-LG41-24V

• Product Type : Graphic Operator Interfaces

• Display

  • Type : Monochrome LCD

  • Colors : Black and White, Gray Scale

  • Backlight : User replaceable CCFL (Service life: 50,000 hrs. or more at 25°C and 24 hrs. operation)

  • Resolution : 320 x 240 pixels

  • Effective Display Area (mm) : W)115.2mm x (H)86.4mm

  • Brightness Control : 4 levels of adjustment available via touch panel

• Memory

  • Application : 1 MB FLASH FEPROM

  • Data Backup : 128KB SRAM - uses a lithium battery

• Electrical

  • Rated Voltage 24VDC

  • Rated Voltage Range 19.2VDC to 28.8VDC

  • Power Consumption 22W or less

• Environmental

  • Ambient Operating Temp. : 0°C to 50°C

  • Storage Temperature : -20°C to 60°C

  • Storage Humidity : 10%RH to 90%RH (non-condensing, wet bulb temperature: 39°C or less)

  • Vibration Resistance : IEC61131-2 compliant. When vibration is NOT continuous: 10Hz to 57Hz 0.075mm, 57Hz to 150Hz 9.8m/s2. When vibration is continuous: 10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2 X,Y, Z direction for 10 times (80min.)

• Structural

  • Ratings : (For front panel of installed unit) Equivalent to IP65f, Nema #250 Type 4x/12

  • Certifications : CE, CUL, UL Cl 1 Div 2 Groups A, B, C, D

• External Dimensions (WxHxD) : 17.1cm x 13.8 cm x 6cm

• Weight : 1.2 Kg

• Shipping Weight : 2.5 Kg
